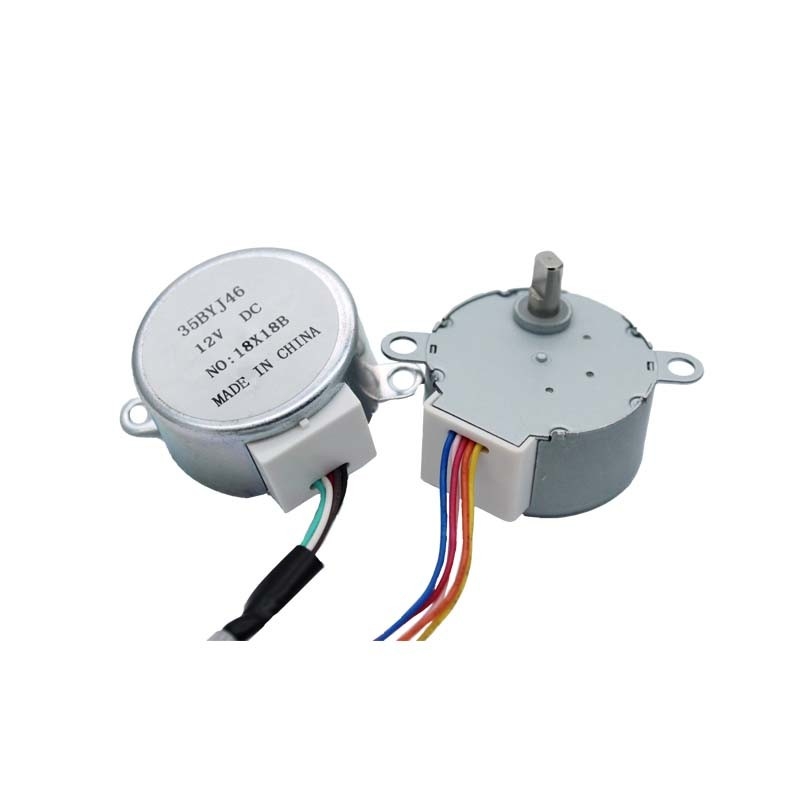

Product Details
Tempat asal: Jiangsu, Tiongkok (Daratan)
Nama merek: JIUQI
Sertifikasi: RoHS,ISO9001
Nomor model: 35BYJ46-18
Payment & Shipping Terms
Kuantitas min Order: 100 pcs
Harga: $2~$5/PCS
Packaging Details: with export carton . Bulk order with pallets
Waktu pengiriman: Pesanan percobaan: 2 MINGGU Pesanan massal: dalam 3 minggu
Syarat-syarat pembayaran: T/T, Serikat Barat, Paypal
Menyediakan kemampuan: 200000 PCS/BULAN
LANGKAH SUDUT (GELAR): |
7.5 |
Tegangan: |
12V |
Perlawanan: |
40 |
Perbandingan gigi: |
1:43.75 |
Fase: |
4 |
Jenis: |
MAGNET PERMANEN |
Menyorot: |
Motor Ditujukan Mikro, motor dc magnet permanen 12V, motor stepper 1/64 |
Nama Produk: |
MOTOR TERTUTUP |
LANGKAH SUDUT (GELAR): |
7.5 |
Tegangan: |
12V |
Perlawanan: |
40 |
Perbandingan gigi: |
1:43.75 |
Fase: |
4 |
Jenis: |
MAGNET PERMANEN |
Menyorot: |
Motor Ditujukan Mikro, motor dc magnet permanen 12V, motor stepper 1/64 |
Nama Produk: |
MOTOR TERTUTUP |
Specification:
| Motor model | 35BYJ46-11 |
| voltage | 12V |
| Resistance | 40Ω±7% |
| Step angle | 43.75° |
| Exciting mode | 1-2P |
| Pull-in torque | 100Hz≥117.6mN·m |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | AC 500V 1min |
| Operating Temperature Range | -30℃-60℃ |
| weight | 45g(ref.) |
Product Highlights
Motor size:35MM
Drive method :Unipolar
Step angle:43.75 degree
Pull-out torque can be customized
customizable front plate available
Special features– Lead Screw, gearbox, pinion gear, connectors, shaft modifications
Low cost, high efficiency, precise step angle, and low noise
Mechanical Dimension:MM
Typical Applications
Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
